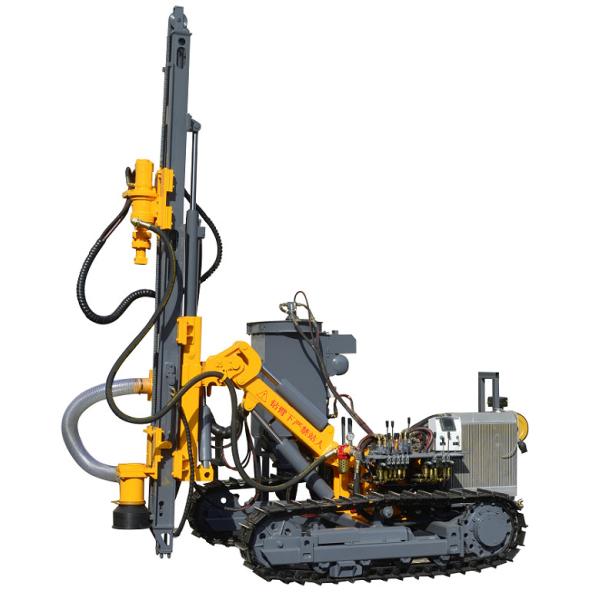

KG920BH Surface DTH Mining Drill Rig For Quarry With Dust Collection

Name: KG920BH Surface DTH Mining Drill Rig For Quarry With Dust Collection
Brand: Kaishan
Price: 13000 USD

Quality KG920BH Surface DTH Mining Drill Rig For Quarry With Dust Collection for sale

Brand Name : Kaishan

Model Number : KG920B

Certification : ISO9001,CE

Place of Origin : Zhejiang province, China

MOQ : 1 set

Price : $13000 - 20000 / Set

Supply Ability : 10 set per month

Delivery Time : 10-30 days

Packaging Details : Nude packing or as per customer's request, suitable for long transportation.

Model : Down the hole drilling rig

Drilling Diameter : 90-115mm

Push Way : Motor.Chain

Drill bit : Φ90,Φ100

Drilling depth : 30m

Usage : Coal,Ore,Drill holes,drill rock

Warranty : 1.5 Years

Contact Now

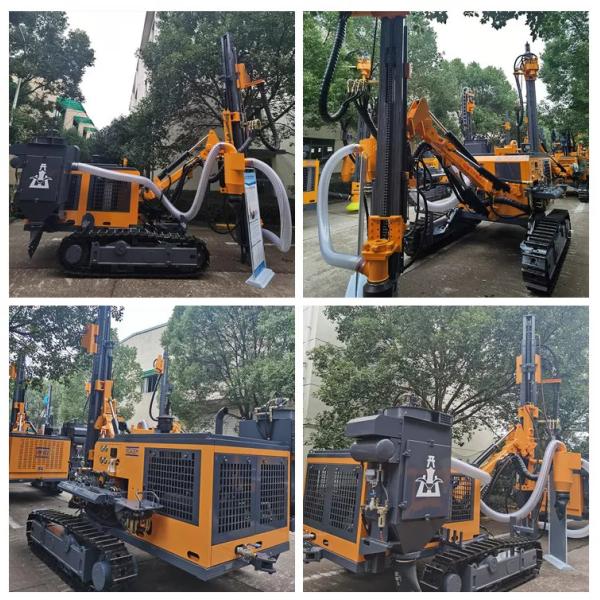

KG920BH Surface DTH Mining Drill Rig For Quarry With Dust Collection

The KG920B/KG920BH down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China lll), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
 The KG920BH down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly
 and reliable.

Techincal parameter of KG920 drilling rig

Model	KG920BIII	KG920BHIII
Weight	4200kg	4400kg
Dimension	560024002300mm	560026002300mm
Drilling hardness	f=8-20
Drilling diameter	Φ90-115mm
Economic drilling depth	25m
Rotation speed	120r/min
Rotary torque	2000N·m
Lifting force	18KN
Propulsion mode	Cylinders - Chain
Feed length	3780mm
Travel speed	0-2.5Km/h
Climbing capacity	30°
Ground clearance	350mm
Feed pitch angle	down 135° up50°
Feed swing angle	left 100° right45°
boom pitch angle	down 50° up25°
boom swing angle	left 44° right45°
Feed extension	900mm
Diesel engine	Yuchai Brand (59KW/2400r/min)
Drill rod	64*2m
Toe-hole drilling	Min.350mm,Max.2750mm
